ELITE Display

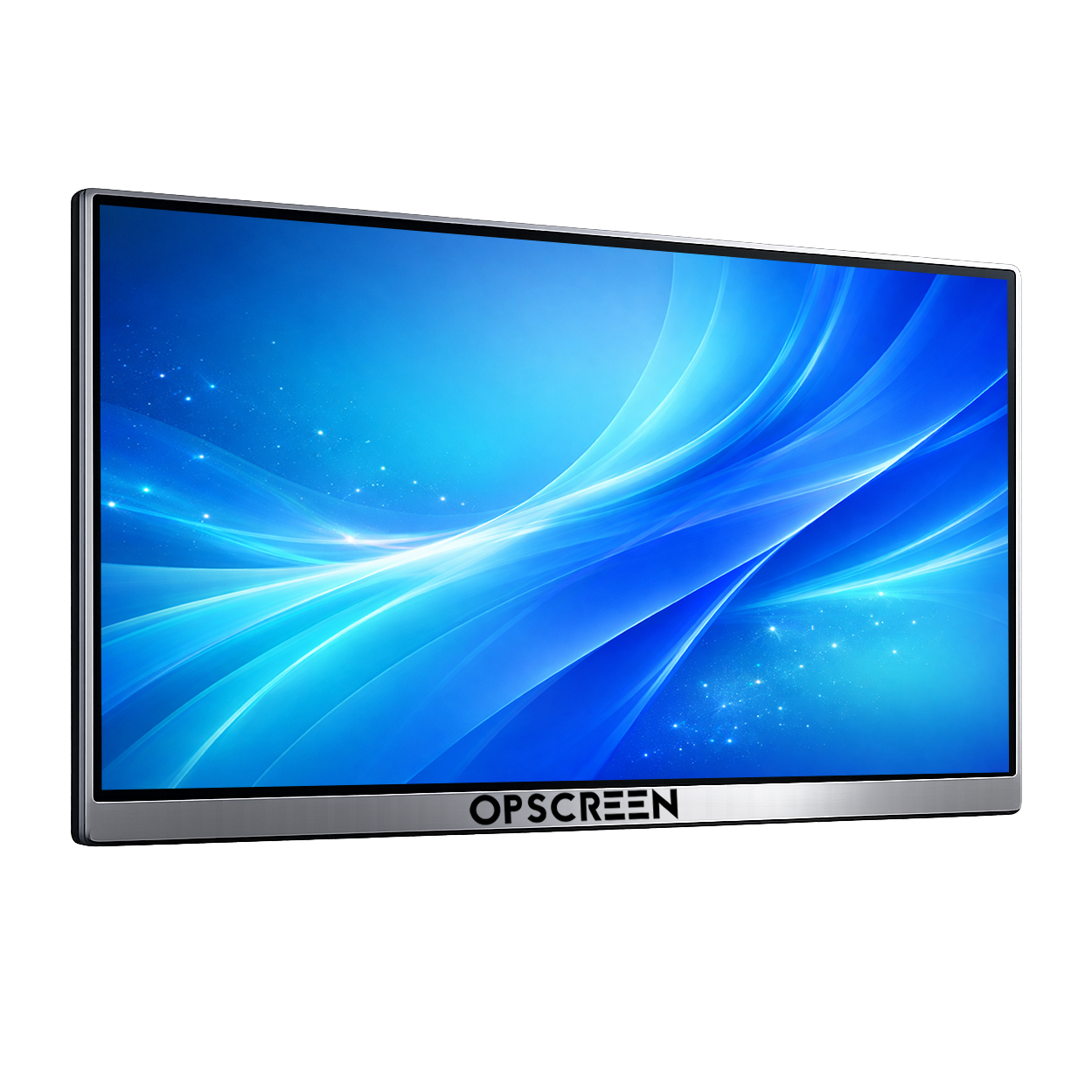

Interactive Display ELITE Series
Key Features
4K UHD 3840 × 2160 resolution with excellent image quality.
Android 13.0 Integrated system for fast and stable operation.
PC Module (optional) Expandable with OPS or mini/micro PC.
HD Camera 1080p Compatible with hybrid and remote learning.
Screen Share Insta Share projection system.
Built-in Speakers Integrated audio for education and office use.
40-Point TouchScreen High-precision capacitive touch interaction.
Product Advantages
  • Interactive display for education and office environments.
  • Designed for hybrid and remote learning.
  • Screen and stylus resistant to germs.
  • 13MP camera, speakers, and 8 integrated microphones.
  • Insta Share projection system for content sharing.
Interfaces

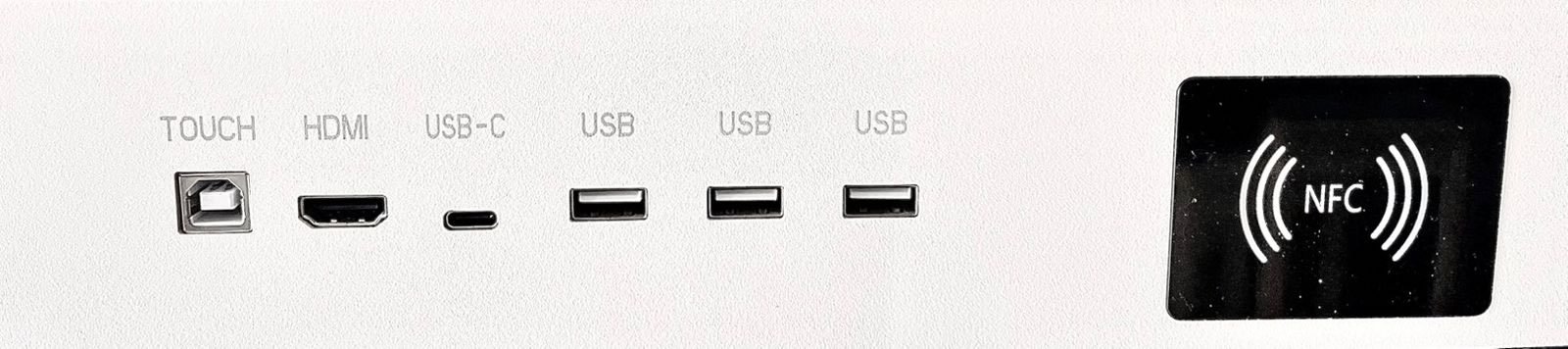

Front interface

Front Interface

Quick front access for frequently used connections.

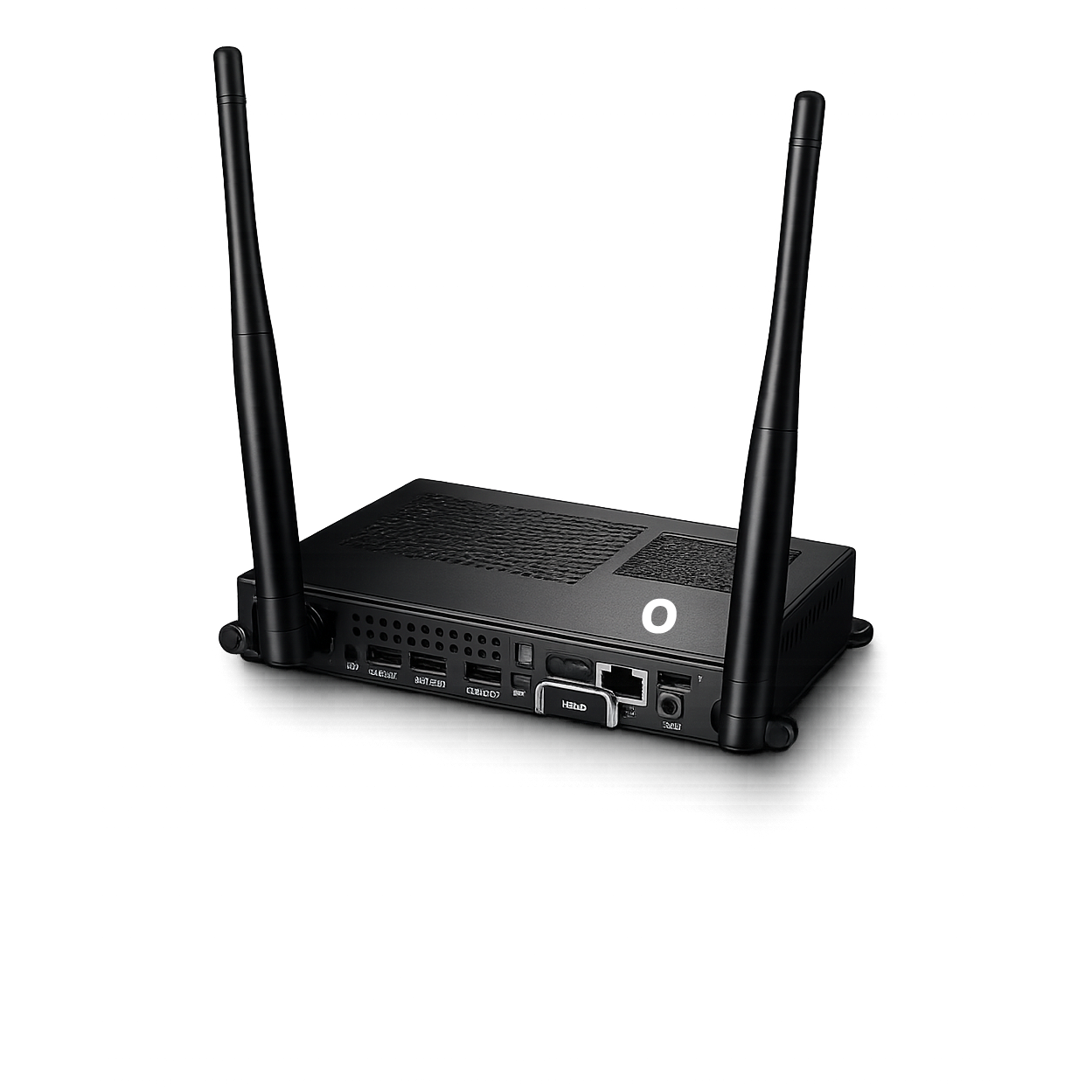

Optional PC module

PC Module (optional)

Compatible with OPS or mini/micro PC with wall mount base.

Display
DISPLAY
Screen Size
65” · 75” · 86” · 98” · 110”
Aspect Ratio
16:9
Display Area (mm)
1429×804 / 1650.24×928.26 / 1895.04×1065.96 / 1880×1065 / 2426×1370
Resolution
4K UHD 3840×2160
Brightness
300 cd/m²
Refresh Rate
60Hz
Viewing Angle
178°
Lifetime
≥30000 H
Operating System
ANDROID OS
System Version
Android 13.0
Chip
T982-SR
CPU / GPU
Quad-core A55, 1.9GHz · Mali G52MP2
RAM / ROM
8 + 64 GB
Bluetooth
Version 5.2 · 2.4GHz · 0~10m Working Distance
Wi-Fi
802.11ac/b/g/n/a · 2.4GHz/5GHz · 0~10m Working Distance
Technology
TOUCH
Detection Type
Capacitive Touch, GFF lamination method
Touch Points
40 touch points
Touch Tool
Touch, Stylus Pen and other conductive objects
Glass Surface
5mm tempered glass, AG surface treatment
Connectivity
CONNECTION
Rear Interface
HDMI IN×2, OPTICAL OUT×1, USB 3.0×1, USB 2.0×1, TOUCH OUT×1, VGA IN×1
Additional Ports
PC AUDIO IN×1, MIC IN×1, RS232×1, RJ45 IN×1, LINE OUT×1
Security
SOFTWARE
Whiteboard
EZWrite 6.0
Screen Sharing
OPSCREEN Share
Device Management
DMS
Access
Floating shortcuts
Security
NFC card included for access
* Information adapted from the “Interactive Display ELITE Series” catalog by OPSCREEN. Some product and interface images should be replaced with official client resources.
