OP-10 Series Interactive Displays

Interactive Displays OP-10 Series
Key Features
4K UHD 3840×2160 · 16:9 · 60Hz
Infrared Touch 40 points · Pen + Touch
Integrated Audio 2 × 16W
Pro Connectivity USB/HDMI/Touch/Type-C · RJ45 · DP
Display
DISPLAY
Screen Size
55” · 65” · 75” · 85” · 98” · 110”
Response Time
8 ms
Aspect Ratio
16:9
Display Area
1211×682 / 1429×804 / 1650.24×928.26 / 1895.04×1065.96 / 1880×1065 / 2426×1370
Resolution
4K UHD 3840×2160
Brightness
325
Contrast
1200:1 / 5000:1 / 6000:1
Viewing Angle
178°
Refresh Rate
60Hz
Back Light Unit
DLED
Lifetime
≥30000 H
Interfaces

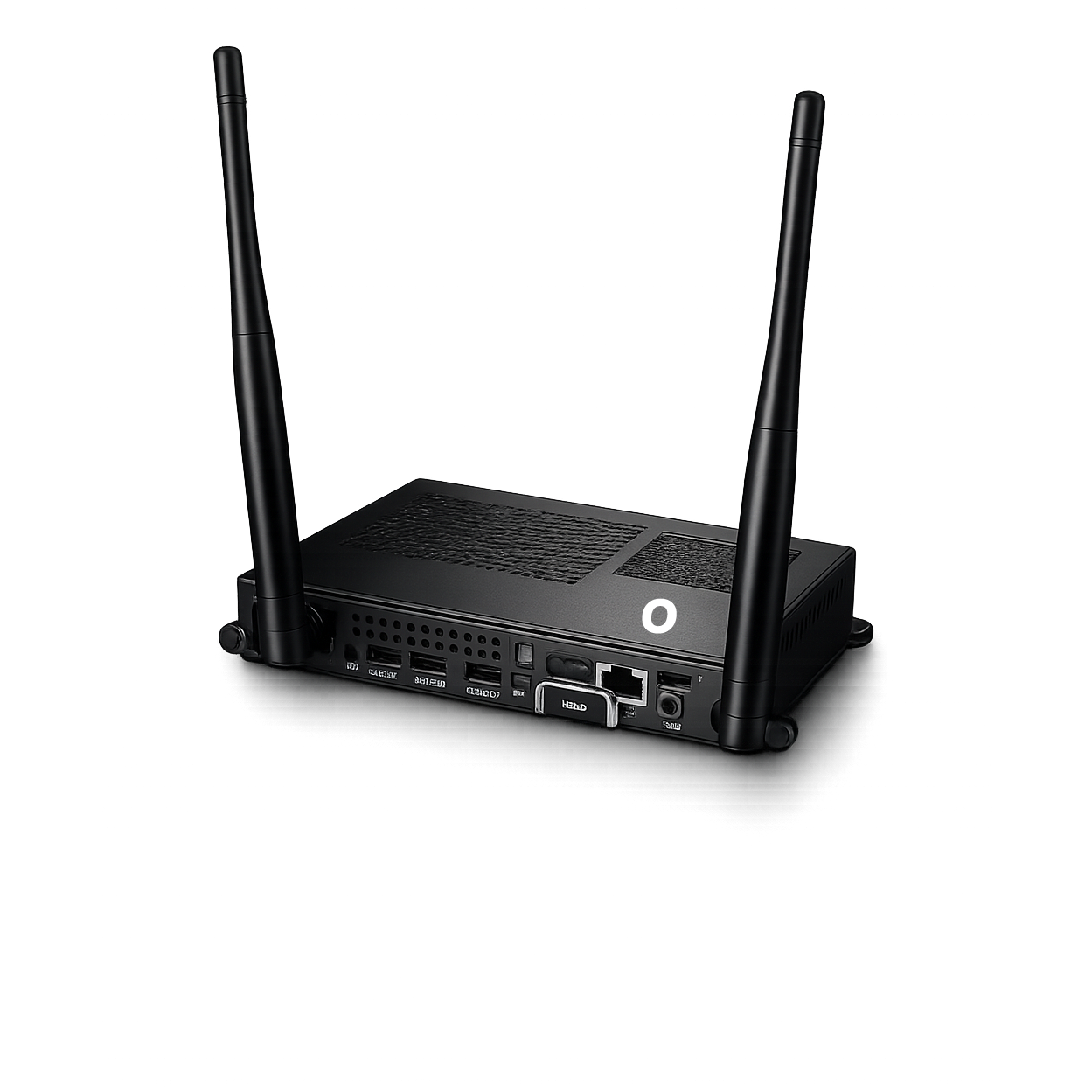

Optional PC Module

PC Module (optional)

Compatible with OPS or mini/micro PC equipment with wall mount base.

Technology
TOUCH SYSTEM
Supported Systems
Windows 10 / Windows 8 / Windows 7 / Windows XP · Android · Linux · Mac OSX · Chrome
Touch Sensitivity
40-point infrared touch
Minimum Object Size
2 mm
Interactivity
Simultaneous Pen and Touch
Response Time
≤5.0 ms
Accuracy
±1 mm
Writing Height
≤3 mm
Writing Type
Single Stylus Pen in two colors
Interpolation Resolution
32767(W) × 32767(D)
Connectivity
CONNECTION
Front Interface
USB 3.0×3, HDMI IN×1, TOUCH USB×1, USB TYPE-C×1
Rear Interface
HDMI IN×1, USB 2.0×2, TOUCH×1, RJ45 IN×1, DP IN×1
Features
GENERAL
Speaker Power
2 × 16W
Screen Size
55” · 65” · 75” · 85” · 98” · 110”
Max. Power
350W ~ 450W
Screen Dimensions
1970×1140×80 / 1500×880×58 / 1700×1028×104 / 1970×1140×80 / 2232×1329×109 / 2507×1475×110
Packaging Dimensions
2120×200×1300 / 1630×170×1010 / 1860×220×1160 / 2120×200×1300 / 2505×450×1750 / 2685×450×1800
Net Weight (Kgs)
40±1 / 140±1
Packed Weight (Kgs)
50±1 / 200±1
Accessories
Power cable ×1, Stylus Pen ×1, Remote control ×1
* Specifications may vary depending on size, model, or configuration.
