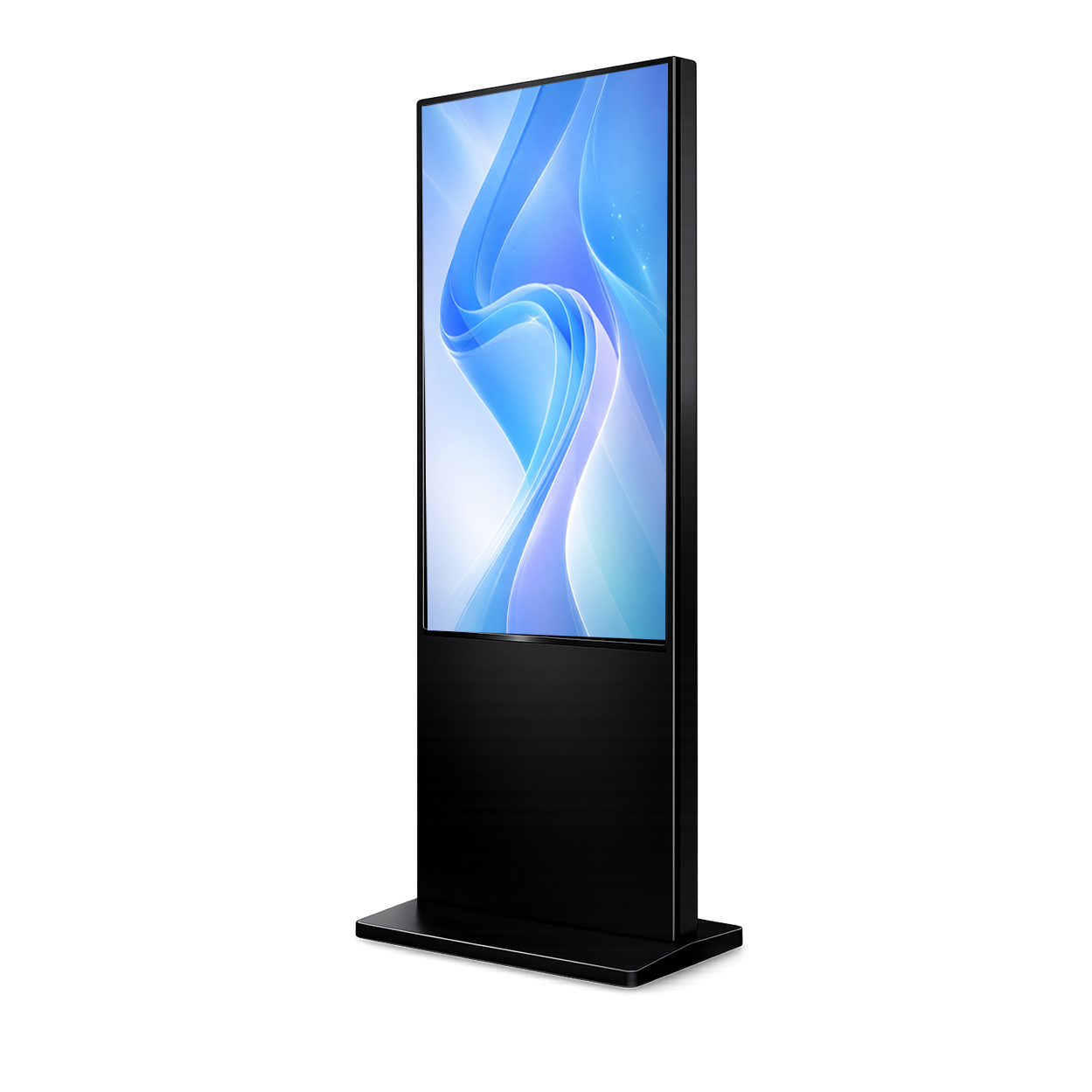

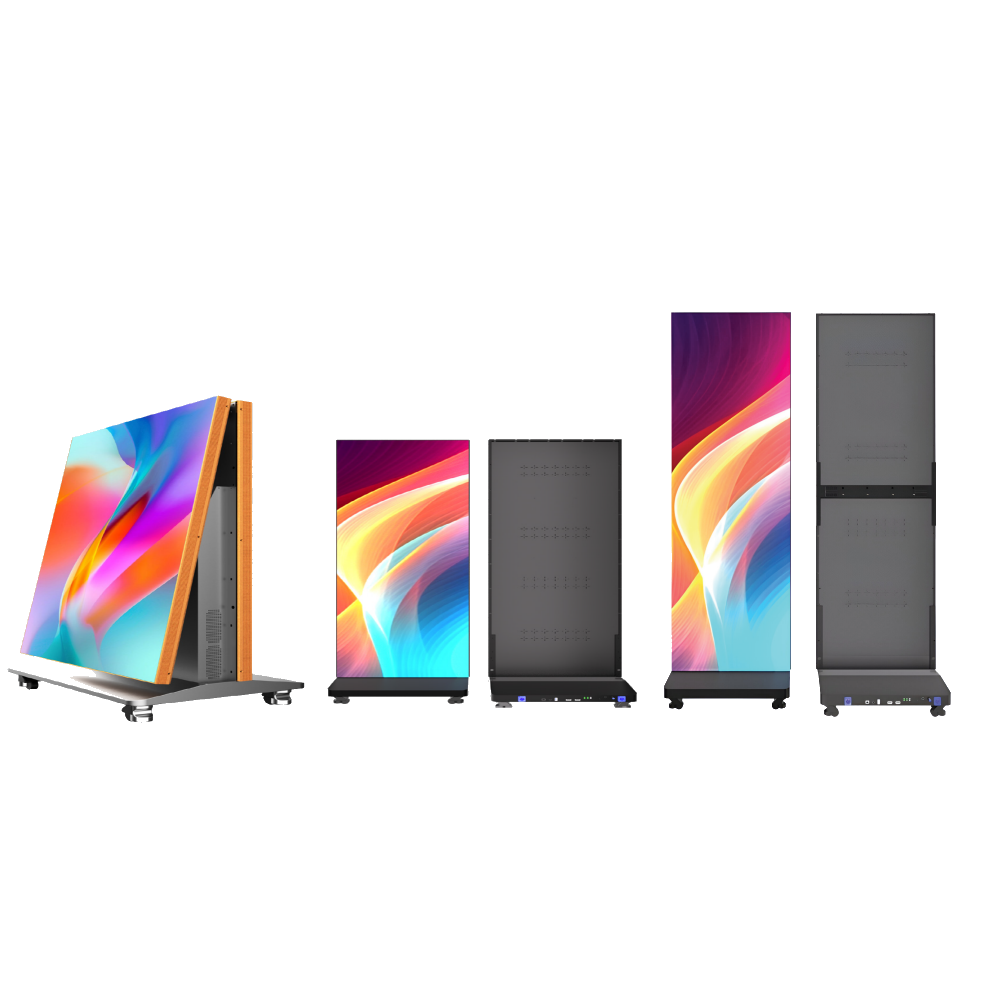

OPSCREEN Indoor Totem P3.91
Key Features
High Definition Excellent image quality and high contrast
Vivid Colors 16.7 million color scale
High Brightness ≥1200 cd/m² for clear visibility
Built-in Speakers Audio ready for digital signage
Total Mobility Equipped with wheels for easy movement
Product Advantages
  • Foldable, compact, and easy to store.
  • Aluminum structure with heat dissipation.
  • No professional installation required.
  • Seamless integration with multiple devices.
  • Synchronized high-definition display.
Display
DISPLAY / MODULE
Module Size
250 mm × 250 mm
Pixel Pitch
3.91 mm
Density
65536 / m²
Configuration
1R 1G 1B
LED Package
SMD2121
Resolution
64 × 64 dots
Brightness
≥1200 cd/m²
Max Power Consumption
32W
Weight
0.573 Kg
Scan
1/16 scan
OPSCREEN Indoor Totem P3.91
Cabinet
STRUCTURE
Ventilation
Thermal exhaust fan x1
Cabinet Resolution
128 × 128
Optimal Distance
4m – 20m
Viewing Angle
160° / 120°
Working Temperature
-20°C to +50°C
Humidity
10% - 95%
Weight
7.5 kg
Thickness
65 mm
System
CONTROL
CPU
Pentium 4 or higher
Operating System
Windows (XP / 7)
Control Mode
Synchronization
Frequency
>1920 Hz
Power Supply
POWER
Voltage
AC110~220V ±10%
Average Consumption
<168W/m²
Max Consumption
<560W/m²
Current
<18 mA
Specifications may vary depending on the model or equipment configuration.

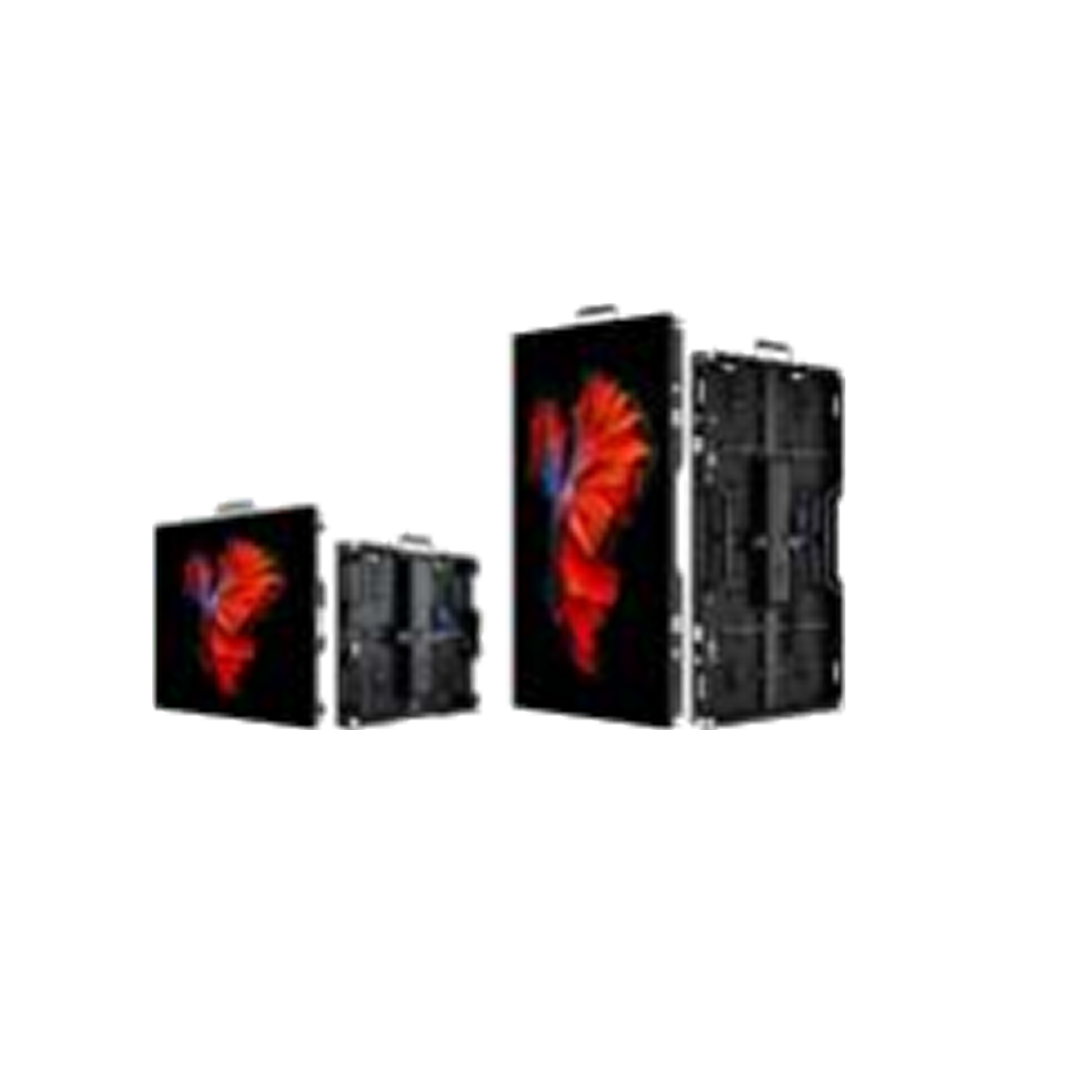

OPSCREEN Outdoor LED Display PW3.9
LED Display PW3.9
Key Features
High Brightness 5000 nits for clear outdoor visibility
High Refresh Rate 3840 Hz refresh rate for smooth image performance
Outdoor Protection IP65 front and IP54 rear protection rating
Long Lifespan Up to 100000 hours of operation
Front Maintenance Front access for module, PSU, and other components
Professional Structure Die-cast aluminum cabinet for greater durability
Product Advantages
  • Ideal for fixed installations and stacking solutions.
  • Excellent outdoor visual performance.
  • Wide horizontal and vertical viewing angle.
  • Robust structure for long-term operation.
  • Compatible with front maintenance for faster service.
Display
DISPLAY / MODULE
LED Type
SMD 3in1 1921
Pixel Pitch
3.9 mm
Panel Dimensions
500 × 500 × 83 mm
Pixels per Panel
128 × 128
Module Dimensions
250 × 250 mm
Brightness
5000 nit
Refresh Rate
3840 Hz
Gray Scale
16 bit
Contrast
3600:1
Color Temperature
6500 K
Cabinet
STRUCTURE
Panel Weight
6.4 kg
Material
Die Casting Aluminum
Driving Type
1/8 Driving Type
Installation
Fixed / Front / Rear / Stacking
Max Rigging
/
Power Supply
POWER
Operating Voltage
100 ～ 240 V
Max Consumption
630 W/m²
Average Consumption
210 W/m²
Working Environment
APPLICATION
Operating Temperature
-20 ～ +50 °C
Storage Temperature
-40 ～ +60 °C
Storage Humidity
10% ～ 85%
Operating Humidity
10% ～ 90%
IP Rating
IP65 / IP54
LED Lifetime
100000 h
Certifications
CERTIFICATES
Certifications
ETL, FCC, ROHS
Viewing Angle
160° / 125°
Specifications may vary depending on equipment configuration, installation, or application.

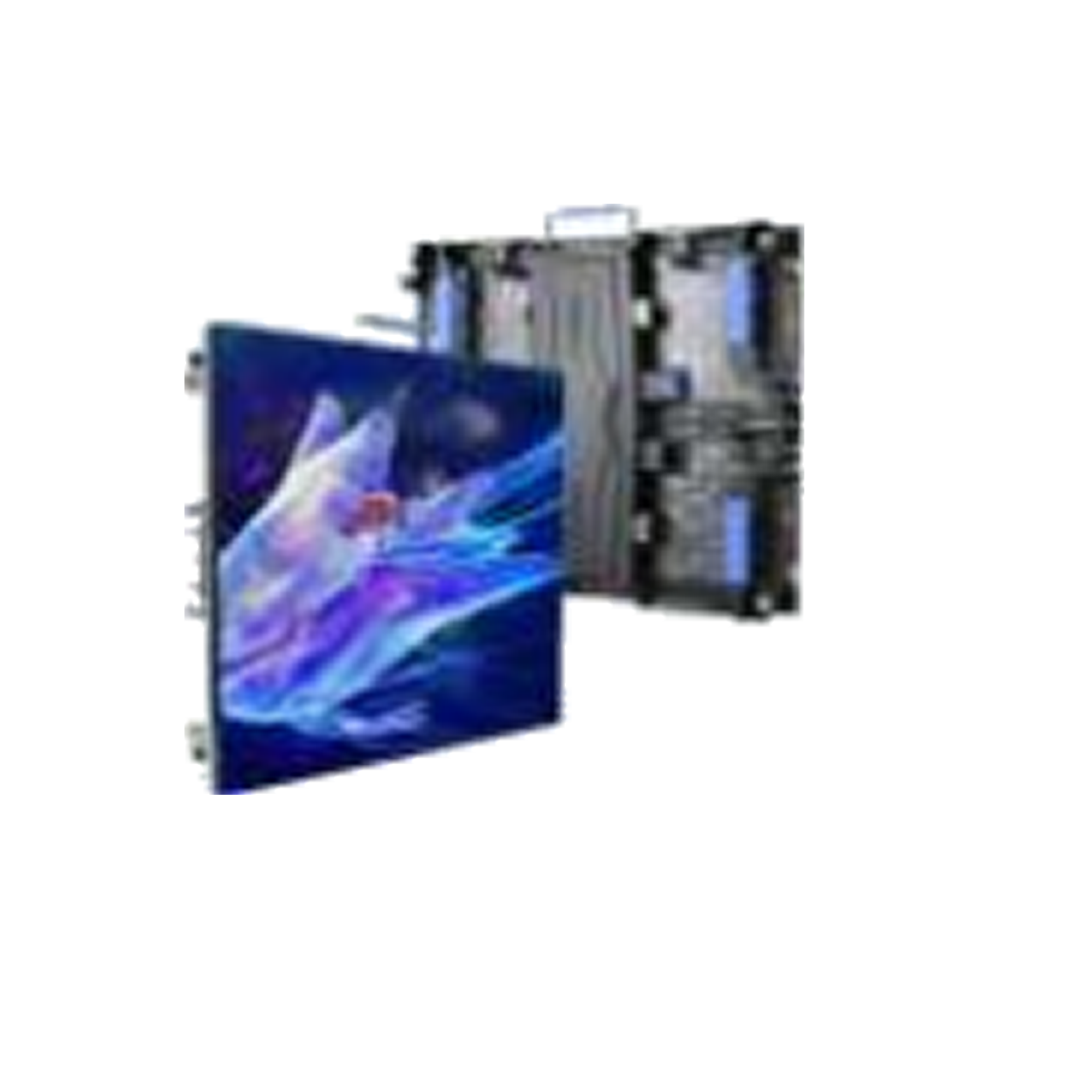

OPSCREEN Outdoor LED Display PW-2.84
LED Display PW-2.84
Key Features
2.84 Pixel Pitch Higher definition for high-precision outdoor display
High Brightness 5000 nits for excellent outdoor visibility
7620 Hz Refresh Rate Smoother image performance for video and dynamic content
IP65/IP54 Protection Prepared for outdoor operation
Front Maintenance Front access for module, power supply, and components
Long Lifespan Up to 100000 hours of operation
Product Advantages
  • High definition for premium outdoor LED solutions.
  • Great visual performance with high contrast and brightness.
  • Durable structure with die-cast aluminum cabinet.
  • Compatible with fixed, front, and stackable installation.
  • Ideal for high-impact commercial applications.
Display
DISPLAY / MODULE
LED Type
SMD 3in1 1515
Pixel Pitch
2.84 mm
Panel Dimensions
500 × 500 × 83 mm
Pixels per Panel
176 × 176
Module Dimensions
250 × 250 mm
Brightness
5000 nit
Refresh Rate
7620 Hz
Gray Scale
15 bit
Contrast
3600:1
Color Temperature
6500 K
Cabinet
STRUCTURE
Panel Weight
6.4 kg
Material
Die Casting Aluminum
Driving Type
1/11
Installation
Fixed / Stacking / Front
Max Rigging
/
Power Supply
POWER
Operating Voltage
100 ～ 240 V
Max Consumption
660 W/m²
Average Consumption
220 W/m²
Working Environment
APPLICATION
Storage Temperature
-40 ～ +60 °C
Operating Temperature
-20 ～ +50 °C
Storage Humidity
10% ～ 85%
Operating Humidity
10% ～ 90%
IP Rating
IP65 / IP54
LED Lifetime
100000 h
Maintenance
SERVICE
Module Maintenance
Front
PSU and Others
Front
Certifications
ETL, FCC
Viewing Angle
160° / 120°
Specifications may vary depending on equipment configuration, installation, or application.
